Draw Length Calculator for Compound Bows: Find Your Fit

When I set up a compound bow, draw length is one of the first things I want to get right. A setting that is too long or too short can change your anchor, alignment, comfort, accuracy, arrow flight, and how well the bow tunes.

This calculator compares two wingspan-based estimates and suggests one or two bow settings to try. These are starting estimates, not your confirmed draw length. Confirm the final setting at full draw as part of the Everyday Bow Hunter Shooting System: fit the bow to a repeatable shooting position instead of forcing your body to fit the bow.

How to Measure Your Wingspan

1. Stand with your back against a wall.
2. Extend both arms naturally to your sides at shoulder height.
3. Keep your hands and fingers straight without stretching for extra distance.
4. Have someone measure from the tip of one middle finger to the tip of the other.
5. Enter that measurement in inches into the calculator.

Do not try to measure this by yourself. Self-measurements are often short because you cannot hold both arms in position while accurately reading the tape. A second person can take the measurement in a few seconds and usually produce a much better result.

The Draw Length Formulas

The calculator uses the most common starting formula:

Draw length = Wingspan ÷ 2.5

You can also compare the result with an alternate formula:

Draw length = (Wingspan − 15) ÷ 2

The two formulas will sometimes agree and sometimes produce slightly different results. That is not a problem. They estimate bow fit from body proportions rather than measuring the bow at full draw. Use them to choose sensible bow settings to try, then confirm the final setting through your actual shooting position.

How Compound Bow Draw Length Is Actually Measured

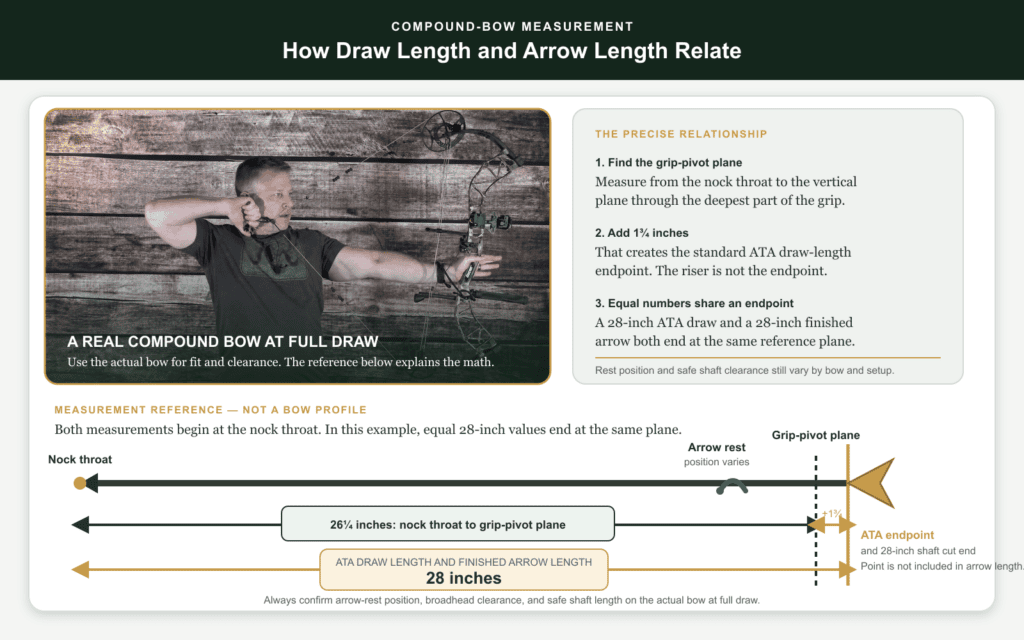

This is where draw length can get confusing, especially when you start comparing it with arrow length. Compound-bow draw length is measured at full draw using the ATA standard:

1. Start at the throat, or groove, of the nocked arrow where it contacts the bowstring.
2. Measure straight forward to the vertical plane through the pivot point of the bow grip. The pivot is the deepest part of the grip where the web of your bow hand rests.
3. Add 1¾ inches.

ATA draw length = nocking point to grip-pivot plane + 1¾ inches

If the distance from the nocking point to the vertical plane through the grip pivot is 26¼ inches, the bow measures 28 inches of ATA draw length. The measurement is not taken to the front edge of the riser. The added 1¾ inches creates the standard ATA endpoint, which may sit near the front of some risers but is not defined by the riser.

Why Draw Length and Arrow Length Can Match

Draw length, finished arrow length, and the distance from the arrow rest to the end of the shaft are three different measurements. Arrow length runs from the throat of the nock to the cut end of the shaft. ATA draw length starts at the same nock throat but is defined as the distance to the grip-pivot plane plus 1¾ inches.

Most modern drop-away rests and Whisker Biscuit-style rests support the arrow inside the riser’s sight window, behind the riser’s front edge. That is why an arrow with the same finished length as the bow’s actual ATA draw length can still leave shaft in front of the rest. The exact amount depends on the bow, the rest, and its fore-and-aft position.

My normal starting guideline for a hunting arrow is actual ATA draw length plus ½ inch. That extra half inch gives me a practical safety margin while I check the real bow at full draw. It is a starting point, not a guarantee that the arrow is safe or a rule that every setup needs the same length.

Before cutting a complete batch, confirm that the arrow stays supported through the full draw cycle and that the broadhead and front end clear the rest, riser, cables, and your bow hand. Never reach toward or put your hand near a broadhead while the bow is drawn. If the setup needs more length, use it. Build and verify one test arrow before cutting the rest.

Use my How Long Should My Arrows Be? guide to make that decision before cutting or ordering a full set.

The draw-length number printed on a compound bow’s module may also differ slightly from the bow’s actual measured draw length because of manufacturing tolerances, string and cable condition, and cam timing. Your D-loop and release aid can change how the bow fits and where you anchor, but they are not part of the ATA measurement.

If you need help identifying the grip, cams, modules, draw stops, or other components involved, use my Compound Bow Parts guide.

How to Confirm Your Draw Length at Full Draw

A calculator cannot see your posture, anchor, release aid, or the geometry of your bow. Once you have an estimated setting, draw the bow safely and check the complete shooting position.

• Your bow arm should be extended naturally without locking the elbow or reaching forward.
• Your bow shoulder should remain low and stable instead of rising toward your ear.
• Your release hand should reach a repeatable anchor without pulling your head backward.
• Your release forearm should align naturally with the arrow rather than collapsing toward your body.
• You should be able to look through the peep without stretching your neck or moving your head to find it.
• The string may contact the tip or side of your nose depending on your facial structure, anchor, bow length, and peep setup. Do not force that contact if it changes your form.

If you are still developing your shooting position, work through my guide on how to shoot a compound bow before making repeated draw-length changes.

Signs Your Draw Length Is Too Long

• You have to lean backward or turn your head to reach full draw.
• Your release arm is overextended and difficult to hold against the back wall.
• Your bow shoulder rises or your bow arm locks.
• The string contacts your forearm or clothing more than it should.
• Your anchor floats behind your normal facial reference.
• Your groups spread horizontally because your alignment and grip pressure change from shot to shot.

A draw length that is too long often feels powerful at first because you are pulling through a longer power stroke. The tradeoff is poor alignment and inconsistency. Extra speed does not help if you cannot repeat the shot.

Signs Your Draw Length Is Too Short

• Your bow arm remains noticeably bent or crowded.
• Your release hand cannot reach a natural anchor.
• Your release elbow sits forward instead of aligning behind the arrow.
• You feel compressed between the grip and bowstring.
• Your peep is difficult to align without moving your head forward.
• You struggle to use back tension because you have run out of room in the shot.

Slightly short is generally easier to work with than substantially long, but that does not mean shorter is always better. The objective is a setting that allows a balanced, repeatable shooting position.

Do Your Release Aid and D-Loop Change Draw Length?

Your bow’s measured draw length does not change simply because you switch releases. Your effective reach and anchor can change, however. A wrist-strap index release, handheld thumb release, and hinge can place your hand differently at full draw.

Before changing the bow’s draw-length module, look at release-head length, wrist-strap position, D-loop length, anchor, and peep location. Sometimes the bow fits correctly and the connection between the release and string needs adjustment. Change one variable at a time and verify the result.

How Draw Length Affects Arrow Speed and Setup

Draw length affects the bow’s power stroke. A longer draw generally allows the bow to transfer more energy to the arrow, while a shorter draw normally produces less speed from the same bow. That does not mean you should lengthen the setting to chase a faster number. Fit and repeatable shooting form come first.

Once your draw length is established, you can evaluate what it means for a real hunting setup with the Arrow Speed, Kinetic Energy, and Momentum Calculator.

Draw length also influences arrow length and spine selection, but it does not decide either one by itself. Use How Long Should My Arrows Be? to choose and verify a safe finished length. Then read Why Arrow Length Matters to understand how that length affects spine, weight, FOC, and the rest of the build.

Why Draw Length Matters When Buying a Compound Bow

Every compound bow has a specified draw-length range. Some adjust through rotating modules, some use replaceable modules, and others require a bow press or different cam components. Before buying a bow, confirm that your estimated draw length falls comfortably within the manufacturer’s range.

Do not buy a bow simply because the listed maximum appears close enough. Verify the available half-inch settings, module requirements, and whether the bow can be serviced locally. My guide to buying a compound bow walks through draw length, draw weight, bow specifications, accessories, and the complete cost of a hunting setup.

Common Draw Length Mistakes

Measuring Your Own Wingspan

Have someone else take the measurement. Trying to hold the tape and reach both hands normally produces a bad starting number.

Treating the Calculator Result as Exact

The formula estimates draw length from body proportions. It cannot evaluate your posture, release, anchor, or the way a particular bow feels at full draw.

Setting the Bow Long to Gain Speed

Extra speed is not worth poor alignment, excessive string contact, or an inconsistent anchor. Set the bow for the shooter, not for the chronograph.

Changing Several Parts at Once

Changing the module, D-loop, peep, and release at the same time makes it difficult to know what corrected the fit. Make one adjustment, shoot, and confirm the result before moving on.

Compound Bow Draw Length FAQs

What is the easiest way to calculate draw length?

Measure your wingspan in inches and divide by 2.5. This produces a useful starting estimate for compound bow setup. Confirm the result at full draw before treating it as your final setting.

How accurate is a wingspan draw length calculator?

It is useful for suggesting bow settings to try, but body proportions vary. Two people with the same wingspan can have different shoulder width, arm proportions, anchors, and release setups. A bow shop or experienced coach can confirm the final fit.

Should I round my draw length up or down?

Use the nearest setting offered by the bow. If the result falls directly between settings, beginning with the shorter option is usually easier to control than starting too long. Confirm the setting through actual shooting form.

Can draw length be adjusted on a compound bow?

Most modern compound bows have adjustable or replaceable modules. The process varies by manufacturer and model, and some adjustments require a bow press. Follow the manufacturer’s instructions or have a qualified technician make the change.

Does draw length affect arrow speed?

Yes. Draw length changes the bow’s power stroke and therefore affects the energy transferred to the arrow. A longer draw generally produces more speed from the same bow, but you should never use an incorrect setting simply to make the bow faster.

Is draw length the same as arrow length?

No. Draw length measures the bow and archer at full draw under the standard measurement. Arrow length is measured from the nock groove to the end of the shaft and must account for the bow, rest, broadhead clearance, and tuning requirements.
