How to Build a High Performance Hunting Arrow for Your Bow

I have built hunting arrows by starting with a shaft I liked and adding parts until the numbers looked right. That approach can work, but it can also leave you solving one problem with another. More point weight changes FOC and dynamic spine. A longer shaft changes weight and spine. Heavier vanes move the balance point back.

The Everyday Arrow System takes a different approach. Start with the bow, set a useful finished-arrow target, and plan weight, FOC, and dynamic spine together. Then build one test arrow, measure the real result, and tune it before you commit the full batch.

This guide walks through that process from the first bow measurements to the final shooting notes. The goal is not a “perfect” arrow. It is a safe, repeatable hunting arrow that fits your bow and can be verified with real measurements.

Building arrows at home is optional. If you only make a small batch each season, a properly selected pre-cut, prefletched arrow can be the better route. Follow the same planning process, then use my guide to buying compound-bow arrows to match the shaft, cut length, spine, and front end before you order.

Before choosing a target weight or component plan, check your bow maker’s minimum finished-arrow-weight requirement and your shaft maker’s spine and component guidance.

The Everyday Arrow System gives you the order. This guide shows you how to carry out each decision.

Before You Start: Confirm the Bow and Establish Arrow Length

The question you are answering: What does my bow need, what job does the arrow need to do, and what starting arrow length fits that setup?

Move on when: you have the real bow settings, normal hunting distance, starting arrow length, prepared shaft cut, and the clearance limits you still need to verify on the bow.

Use the bow’s actual settings, not the maximum numbers printed on the limbs or the speed of another bow.

• • Bow model and IBO rated speed

• • Measured draw length
  • Starting planned arrow length and prepared shaft cut

• • Measured peak draw weight

• • Total bowstring accessory weight, including the peep, D-loop, and silencers

• • Normal shooting distance

• • Bow maker’s minimum finished-arrow weight

The build mission includes the broadhead style, expected shooting positions, typical distance, and any clearance limits created by the rest, riser, or broadhead. Those details help confirm the starting length and guide the component plan, but they do not replace the bow-based weight target.

Use the Arrow Length Planner with your actual draw length to establish the starting arrow length and prepared shaft cut. Carry those same measurements into the weight, FOC, and Dynamic Spine calculations. Verify broadhead and rest clearance at full draw before you cut or permanently assemble the arrow.

Step 1: Find Your Target Arrow Weight

The question you are answering: What finished-arrow-weight range gives this bow a sensible starting point for the way I hunt?

Move on when: you have a Formula Target and a working range. This is a starting point for the build, not a magic final number.

Use The Everyday Arrow Weight Formula to find the target and working range for your bow. The Formula uses draw weight as its base, then adjusts for IBO speed, draw length, and shooting distance.

The target is the center of the plan, not a rule that every finished arrow must hit exactly. The working range gives you room to solve the real build around available shafts, parts, FOC, and dynamic spine.

Step 2: Compare Performance at That Weight

The question you are answering: What do I gain or give up if I build a little lighter or heavier than my target?

Move on when: you can name the weight range you prefer and why—for example, a little more speed and flatter trajectory, or a little more momentum with a slower arrow.

Enter the bow setup and current arrow in the Arrow Speed, Kinetic Energy, and Momentum Calculator. Build the comparison to see the Formula Target and nearby finished-arrow weights.

A lighter arrow is usually faster and has a flatter path. A heavier arrow is usually slower and carries more momentum. Kinetic energy may rise, fall, or stay close because both weight and speed are part of the calculation. Compare the whole result instead of chasing one number.

These are planning estimates. Use a chronograph after the arrow is built when you want measured launch speed.

Step 3: Confirm Your Trajectory and Sight Plan

The question you are answering: Does the speed and weight range I prefer fit my real zero, sight plan, and hunting distances?

Move on when: the path works for the shots you expect. If it does not, go back to Step 2 and compare a nearby weight before buying parts.

Now take the speed you estimated in the performance comparison and open the Hunting Arrow Trajectory Calculator. Use the zero you actually shoot, enter your finished-arrow weight, and set the vertical window you personally accept. The calculator shows where the arrow rises, where it drops, when it leaves that window, and how a small ranging mistake changes impact.

For a close-range hunting bow, compare the 20- and 25-yard zeros if that matches your sight setup. My standard rule uses a 20- to 25-yard zero with about ±4 inches of vertical room. It is a close-range starting point, not a rule every hunter must use. If you run a slider, shoot TAC, or practice 3D at longer distances, extend the model through 100 yards and use the zero you really run.

Write down the zero you chose, the distance where the arrow first leaves your window, and the sight marks you need to verify later. This step does not tell you what shot to take on an animal. It helps you build a sight plan you can test on the range.

Step 4: Use Your Arrow Length to Start the Component Plan

The question you are answering: How does the arrow length I established at the start affect the shaft and components I can use?

Move on when: you have a draw-length-based shaft-length plan, recorded the way the calculators require, and have a preliminary spine direction.

Carry the starting arrow length into the component plan

You established the starting arrow length and prepared shaft cut before Step 1. Now carry those same measurements into the Arrow Weight, FOC, and Dynamic Spine Calculators while you choose the shaft and components. If a real shaft, broadhead, rest, or clearance requirement changes the length, update the plan and rerun every connected calculation.

Before permanent assembly, verify that the planned length gives the installed broadhead safe clearance from the rest and bow at full draw. That check confirms your draw-length-based plan; it does not replace it with a new guessing system. If the real setup requires a change, update the planned length and rerun the weight, FOC, and spine checks before you cut or glue anything.

Choose a preliminary spine

Start with the shaft maker’s current spine chart, then check the planned setup with the Dynamic Spine Calculator. Enter the bow’s IBO or ATA speed, actual peak draw weight, draw length, proposed shaft length, and total front-component weight. The calculator can recommend a practical spine range or compare a shaft you own or are considering. Its brace-height and release-method fields are optional and are most useful when your setup differs from the standard assumptions.

Total front-component weight means everything carried at the front of the shaft: the field point or broadhead, insert, half-out or outsert, collar, weight screw, and any other added front weight.

A fixed-blade broadhead does not automatically require a different shaft spine just because it has fixed blades. Its weight and the complete front-component mass affect dynamic spine. Its blade surface also makes poor alignment or tune easier to see.

Plan the Shaft and Every Component

The question you are answering: Which real shaft and parts can build the weight range I chose without creating a new problem?

Move on when: every component is listed with its weight, and your planned total is still inside your working range.

If you want to compare exact reviewed products before building the parts list by hand, open the Hunting Arrow Component Finder. It keeps the shaft identity, reviewed fit paths, required parts, and planned system weight together.

Compare Exact Parts in the Component Finder →

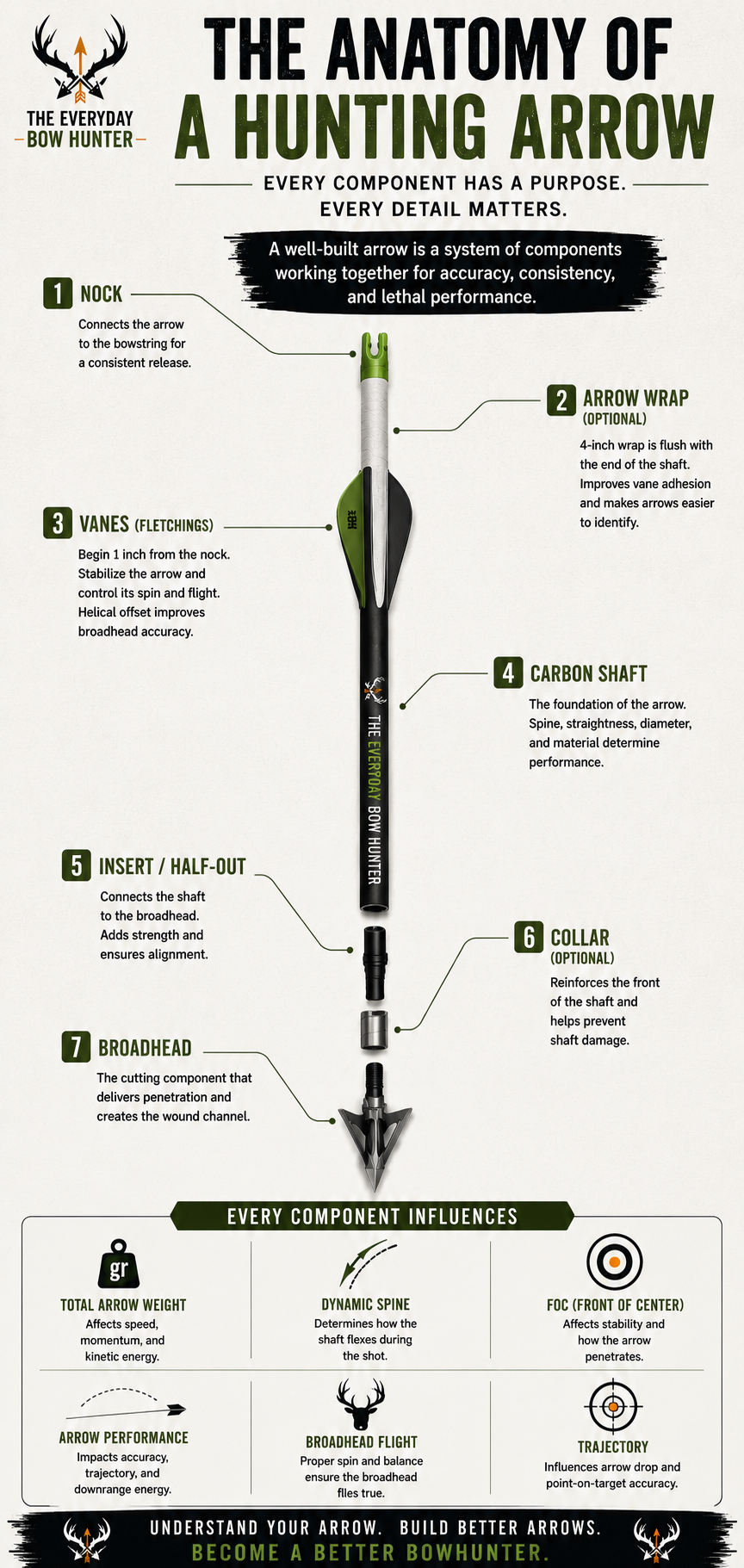

Use the Arrow Weight Calculator as a build sheet. Include every part that will be attached to the finished arrow.

• • Shaft GPI multiplied by cut length

• • Insert, outsert, half-out, collar, or footer

• • Field point or broadhead

• • Nock, bushing, and any pin system

• • Vanes or feathers

• • Wrap, cresting, lighted nock, and other attached parts

Use measured component weights when possible. Listed weights are useful for planning, but actual parts can vary. Weighing a sample of each part gives you a better finished-weight estimate.

Once the parts list is close, enter those same specifications in the Arrow FOC Calculator’s planning mode. Check the projected total weight, balance point, FOC, and front-weight comparisons before you permanently assemble the arrow.

Then return to the Dynamic Spine Calculator with the proposed shaft length and combined front-component weight. Use recommendation mode if you do not know which spine to start with, or comparison mode if you own a shaft or are considering one. Build the comparison to see how changes in shaft length and front weight move the estimated spine range. Confirm the result with the shaft maker’s current chart before you buy shafts, cut them, or glue inserts.

Broadhead and front-component choices

Choose the broadhead for the way you plan to use and tune the arrow, then include its real weight in the front-component total. Fixed and mechanical designs have different blade area, structure, clearance, and tuning needs. Neither label guarantees flight or penetration by itself.

Check that the broadhead fits the shaft and insert system, clears the riser and rest, aligns correctly, and can be tuned with the bow. If a field point is used during setup, match the broadhead’s weight.

Vane and nock choices

Three- versus four-fletch, vane height, offset, and helical all involve tradeoffs in steering, clearance, drag, noise, and rear weight. Choose a configuration that clears the rest and cables and controls the broadhead in actual shooting. Verify it instead of relying on a fixed rule.

Step 5: Optimize FOC With the Real Component Plan

The question you are answering: Can I keep this arrow in a useful FOC working range without turning it into a front-heavy lawn dart?

Move on when: your planned FOC stays in the working range and still supports a balanced arrow. Go beyond that range only when you are committed to doing the extra tuning work.

Many hunting arrows land around 10–15% FOC. In the Everyday Arrow System, I often use 13–18% as a working range. It is not a magic target, and I do not want you creating a front-heavy lawn dart just to chase a bigger FOC number. That range is a useful place to begin comparing balanced hunting-arrow plans.

If you choose to go above that working range, do it on purpose. More front weight changes total arrow weight and dynamic spine, and it may require more careful tuning. Anything over 20% is a specialized build—not the default answer for a beginner.

Choose the working FOC range before you permanently select and install the shaft and components. Use planning mode in the Arrow FOC Calculator to enter the shaft length, GPI, and proposed component weights. It estimates finished weight, balance point, and FOC so you can compare front-weight options before assembly.

After you build one completed test arrow, switch to measuring mode and enter the physical balance point. That confirms the real FOC before you finish the full batch.

Step 6: Validate Dynamic Spine With the Complete Plan

The question you are answering: Will this exact shaft, cut length, and front end flex correctly from my bow?

Move on when: the complete plan falls in a practical spine range. If it does not, correct the shaft choice, length, or front end before building.

Once you have a real shaft length and a full front-end plan, return to the Dynamic Spine Calculator. This is the final calculator check before you cut a group of shafts or glue a batch of inserts.

• • Enter your actual peak draw weight and draw length.

• • Use the length you plan to cut, measured from the nock throat to the end of the shaft.

• • Add every piece of the front end: point or broadhead, insert, outsert or half-out, collar, and any added weight.

• • Compare the result with the shaft maker’s current chart before ordering or cutting shafts.

If a component change moves the spine result, do not ignore it. Go back to the parts list, adjust the complete plan, and run the FOC and spine checks again. That back-and-forth is not a mistake. It is how you build an arrow that works together instead of chasing one number.

Weight, FOC, and Spine Must Be Solved Together

This is the center of the build process. Every meaningful component change should be checked against finished weight, FOC, and dynamic spine.

Change	Typical Effect	What to Recheck
Heavier point, insert, outsert, or collar	Adds finished weight, usually moves FOC forward, and weakens dynamic spine	Finished weight, dynamic spine, clearance, and tune
Longer shaft	Adds weight and weakens dynamic spine	Spine, clearance, finished weight, and FOC
Heavier vanes, wrap, bushing, or nock	Adds rear weight and usually moves FOC back	FOC, clearance, drag, noise, and tune
Stiffer shaft	Changes dynamic reaction and may change shaft GPI	Finished weight, front-weight plan, and tune

Do not add front weight only to reach an FOC number. Do not choose a lighter shaft only to make room for heavier components. Let the three checks work together until the complete plan fits the bow.

Step 7: Build One Test Arrow Before the Batch

The question you are answering: Does one real arrow match the plan and tune correctly before I spend time and money on the whole dozen?

Move on when: the test arrow is measured, safely assembled, and proven through your tuning process.

A test arrow gives you a chance to catch a bad assumption before every shaft is cut, glued, and fletched.

1. 1. Confirm shaft length, component fit, and broadhead clearance.

1. 1. Build one complete arrow according to the component makers’ instructions.

1. 1. Weigh the finished test arrow on a grain scale.

1. 1. Find the balance point and use measuring mode in the Arrow FOC Calculator to confirm the finished FOC.

1. 1. Recheck dynamic spine using the actual finished length and front weight.

1. 1. Shoot and tune the completed test arrow. Confirm a clean basic tune, broadhead flight, clearance, and repeatable impact before you build the remaining arrows.

1. 1. Correct the complete plan before building the rest of the arrows if the measurements or tuning results show a problem.

A representative mock-up can help with planning when the component system allows it, but never shoot an incompletely installed arrow. Build and shoot only after every component is installed and cured as directed.

Worked Planning Example

This example shows the process. It is hypothetical and is not a shaft or component recommendation.

Start with a bow rated at 340 fps IBO, set at 27.5 inches and 62 pounds, with 15 grains of bowstring accessories and a normal distance of 40 yards. The Everyday Formula Target is 490 grains, with a 465–515-grain Working Range. The performance calculator estimates 250.0 fps, 68.02 ft-lbs of kinetic energy, and 0.544 slug-ft/s of momentum at the 490-grain target.

Planned Part	Planning Weight
28-inch shaft at 8.9 GPI	249.2 grains
Broadhead	125 grains
Insert and collar system	75 grains
Nock	9 grains
Three vanes	24 grains
Wrap	8 grains
Planned total	490.2 grains

That parts list reaches the weight target on paper, but it is not a finished build plan yet. The next checks are shaft-maker spine guidance, dynamic spine with the 200-grain front-component total, component compatibility, clearance, and a working FOC target.

Enter the planned parts in the FOC Calculator before assembly. For a 28-inch arrow and a 15% FOC target, the planned balance point is 18.20 inches from the nock throat. After the test arrow is complete, suppose it weighs 492 grains and balances at 18.15 inches. Measuring mode confirms 14.82% FOC.

The result is close to the Formula Target and inside both common industry guidance and my preferred FOC range. I would not add weight just to turn 14.82% into exactly 15%. I would move to tuning and flight testing. If the dynamic-spine check or tune shows a problem, I would correct the complete plan before building the rest of the batch.

Step 8: Complete the Batch and Verify Performance

The question you are answering: Do the finished arrows match each other closely enough to hunt and shoot the same?

Move on when: the batch is inspected, weighed, verified for broadhead flight, and checked at the distances you plan to hunt.

Once the completed test arrow meets the planned weight, FOC, and spine checks—and tunes and shoots correctly—build the remaining arrows with the same process and component orientation. Then verify the completed batch in stages.

1. 1. Inspect every arrow. Check straightness, component seating, nock fit, vane clearance, and broadhead alignment.

1. 1. Match finished weights. Record each arrow’s weight and keep the batch within a practical tolerance.

1. 1. Confirm the basic tune. Make sure the finished batch holds the tune established with the test arrow. Use paper, bare-shaft, walk-back, or another method that fits the setup.

1. 1. Confirm broadhead flight. Compare field-point and broadhead impact with the finished arrows. Correct the bow setup in small, controlled steps only if the batch shows a problem.

1. 1. Chronograph when possible. Compare measured speed with the calculator estimate and save the actual number.

1. 1. Test realistic shots. Confirm trajectory, sight marks, clearance, noise, and repeatable groups at normal distances and shooting positions.

Arrow weight, FOC, and calculator results help you plan. Tuning and real shooting tell you whether the built system works.

Step 9: Record the Finished Arrow

The question you are answering: Could I rebuild this exact arrow next season or diagnose a problem later?

Move on when: your final specifications, measured results, and tuning notes are recorded in one place.

• • Bow model, draw length, and actual draw weight

• • Shaft model, spine, GPI, and cut length

• • Every component and measured weight

• • Finished-arrow weight

• • Measured FOC

• • Estimated and chronographed speed

• • Tuning changes, sight marks, and broadhead-flight notes

A good record saves time when you replace an arrow, rebuild the bow, or compare a future setup. It also turns a one-time result into a process you can repeat.

Common Arrow-Building Mistakes

• • Choosing components one at a time. A front-weight change can force a different shaft or length choice.

• • Checking FOC after the batch is finished. Set the target during planning and measure one test arrow first.

• • Using listed draw weight instead of measured draw weight. The real bow setting belongs in every calculation.

• • Ignoring the bow maker’s minimum arrow weight. Planning guidance never replaces the maker’s safety requirement.

• • Assuming heavier is always better. More weight can quiet the bow and add momentum, but it also reduces speed and increases trajectory drop.

• • Assuming a calculator replaces tuning. A planned number cannot confirm clearance, component alignment, or broadhead flight.

Frequently Asked Questions

What should I calculate first when building a hunting arrow?

Start with the bow’s actual specs and minimum arrow-weight requirement. Then use the Everyday Arrow Weight Formula to set the finished-arrow target and working range.

Should I choose arrow weight, FOC, or spine first?

Set the finished-weight target first, then solve the planned weight, working FOC, and dynamic spine together. Each component choice can change all three.

When should I measure FOC?

Set a working FOC target during planning and use planning mode to estimate it before assembly. Measure the completed test arrow’s physical balance point and confirm its real FOC before you tune it or finish the batch.

How far should an arrow extend past the rest?

Start with your actual draw length to establish the initial shaft-length plan. Use that planned length in the calculators, then confirm safe broadhead and rest clearance at full draw before permanent assembly. Clearance confirms the plan; it does not replace the draw-length starting point.

Do fixed-blade broadheads require a stiffer arrow?

Not automatically. The broadhead and total front weight affect dynamic spine, while the blade surface makes alignment and tuning problems more visible. Use the shaft maker’s chart, check dynamic spine, and tune the actual broadhead.

Do I need a chronograph?

No, but it gives you measured launch speed. The performance calculator is useful for planning and comparison; a chronograph lets you replace the estimate with the real speed of your finished setup.

Can I use prebuilt arrows instead of building them at home?

Yes. This is a planning guide first. You can use the same target weight, shaft length, component, FOC, and spine decisions when you order a prebuilt arrow or have a shop build it. The important part is that the complete arrow matches the plan and is verified before hunting.

Why do I check dynamic spine more than once?

The first check helps you narrow down practical shaft choices using your draw-length-based shaft plan. The final check uses the complete front end and planned cut length. It is the difference between picking a reasonable starting shaft and verifying the actual arrow you plan to build.

Should I add front weight to get the highest FOC number possible?

No. Stay in the working FOC range unless you are deliberately building a specialized setup and are ready to tune it carefully. More front weight changes total arrow weight and dynamic spine. A bigger number is not automatically a better hunting arrow.

Does this guide teach me how to physically build arrows at home?

This guide teaches you how to plan and verify the complete arrow before you buy, cut, glue, or fletch anything. The hands-on process of cutting shafts, installing components, and fletching belongs in the separate at-home build guide.

The best arrow build is not the one with the most extreme number. It is the one you can explain, measure, tune, and reproduce. Build the arrow as a system, then let the finished result earn your confidence.

Stay lethal,

– Mike
