Why Leveling Your Bow Sight is Critical: Avoid These Accuracy Mistakes

If your bow sight isn’t properly leveled, it doesn’t matter how well you tuned your bow, built your arrows, or practiced your shooting form. Your arrows will still miss. A misaligned sight throws everything off, especially at longer ranges or when shooting uphill or downhill. Leveling your bow sight isn’t optional. It’s foundational. And yet, a lot of bowhunters, especially beginners, don’t know what sight leveling actually means or why it matters.

In this post, I’ll break down why proper sight leveling is non-negotiable, what the 1st, 2nd, and 3rd axis adjustments do, and why using a sight that doesn’t allow for full axis leveling can set you up for failure. If you care about consistent, reliable accuracy, this is the place to start.

Why Sight Leveling Matters for Accuracy

When your sight isn’t leveled, your pins may appear lined up at full draw, but the actual alignment of the sight housing causes the bow to cant (lean left or right). This causes your arrow to drift laterally, even if everything else is perfect. If you’ve been constantly 2 inches left or more on a target and shot over and over only to find you can’t fix it, your sight might not be level.

Here’s what happens:

• At 20 yards, you might barely notice.
• At 30–40 yards, you’re grouping inconsistently.
• At 50+ yards, you’re consistently missing left or right.

This gets worse in hill country, where steep angles exaggerate these issues. An unlevel sight can wreck your shot placement if you hunt from a treestand or shoot on uneven terrain.

The 3 Axes Explained: 1st, 2nd, and 3rd Axis Leveling

If you’re new to this, the term “axes” can feel confusing. Here’s a simple breakdown that explains what each one is, what it controls, and why it matters.

1st Axis – The Sight Body’s Vertical Orientation.

This is the plane that runs vertically through the sight’s main housing — the part that mounts to your bow riser. The 1st axis determines whether the sight itself is level when the bow is held upright. Think of this as the master level — if this is off, every other adjustment will be off too.

When you’re looking at the bow straight on, this axis needs to be perpendicular to the string. If the sight body is tilted forward or backward in this plane, the sight will be off-kilter even before you draw. Some cheap sights don’t allow you to adjust this, which means you’re locked into misalignment.

2nd Axis – Leveling the Sight Ring Itself.

This is what most bowhunters are familiar with: the horizontal level that you use at full draw to make sure the bow isn’t canted. The 2nd axis controls whether your bubble level is true when your bow is vertical.

If this is off, your pins won’t track in a true vertical line. That means when you move from a 20-yard shot to a 40-yard shot using your bottom pin, the arrow can drift left or right even though your pin is centered. That drift gets worse the farther you shoot.

To adjust the 2nd axis, you typically loosen screws that allow you to rotate the sight ring left or right to match the bow’s riser plane. Once this is aligned and your bubble reads level when your bow is vertical, your sight ring is properly leveled.

3rd Axis – Tilt of the Sight Toward or Away From You.

The 3rd axis is the one most beginners don’t even realize exists — but it’s absolutely critical, especially when shooting uphill or downhill. This axis controls the sight’s tilt forward or backward relative to the shooter.

Here’s how it works:

• Imagine holding your bow level on flat ground — bubble looks good, everything feels perfect.
• Now tip the bow up 45 degrees to shoot at a steep target uphill.
• If your 3rd axis is off, your bubble may still look centered — but your pin is actually tilted slightly left or right. So your arrow will miss in that direction.

The same thing happens downhill. A poor 3rd axis adjustment causes your pins to track at an angle instead of a vertical plane. At longer distances or steep terrain, this will absolutely cost you accuracy.

To adjust this, many high-end sights have a dedicated 3rd axis screw or bracket that allows you to pivot the entire scope housing slightly forward or backward — essentially syncing the tilt of the sight to how your bow naturally sits at full draw when angled.

All three axes need to be dialed in so that your pin movement and point of impact stay true across all angles.

The Problem with Cheap Sights

Here’s the part most beginners don’t realize: not all bow sights allow for 3-axis adjustment. In fact, many entry-level or budget sights only let you level the 2nd axis (if that) AND – assume they are factory leveled for the 1st axis!

What this means:

• You can’t tune the sight fully to match your bow setup.
• Your accuracy breaks down in real-world hunting conditions.
• You’re forced to adjust your form or compensate, which creates more inconsistency.

If your sight doesn’t allow for leveling all three axes, that’s a hard ceiling on your bow’s potential.

How to Tell if Your Sight is 3-Axis Adjustable

Check your sight’s spec sheet or manual. A true 3-axis adjustable sight will have:

• Independent leveling screws for each axis.
• Micro-adjustments for fine-tuning.
• A solid mount that doesn’t flex or shift during adjustment.

Brands like Spot Hogg, Axcel, Black Gold, and HHA all offer sights with full 3-axis adjustability. These are the kinds of sights that serious bowhunters rely on.

My Personal Recommendation

If your current sight doesn’t allow for full leveling, I recommend upgrading. Some of my favorite options include:

• Spot Hogg Fast Eddie XL – Rock solid, micro-adjustable, fully 3-axis tunable.

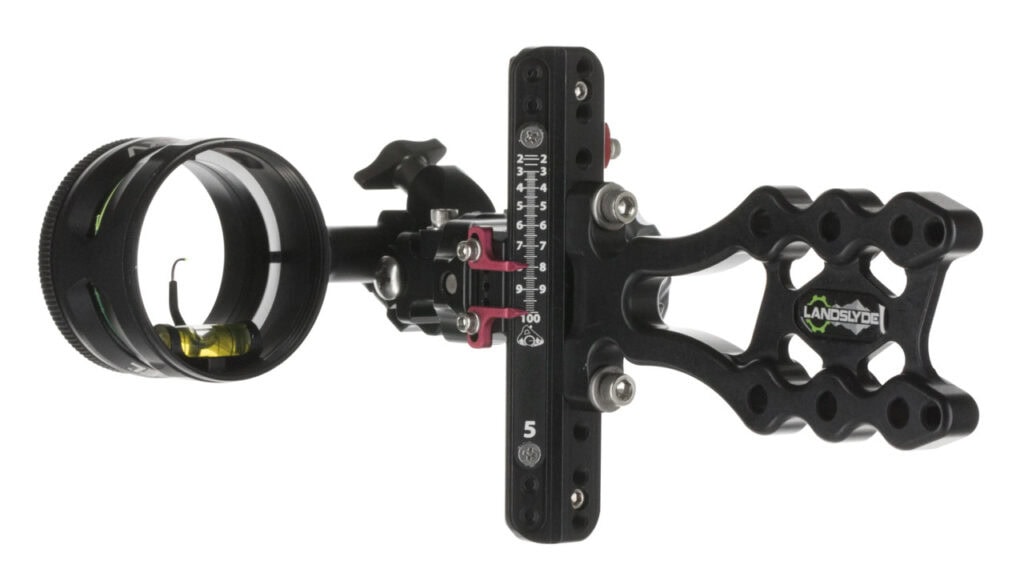

• Axcel Landslyde – One of the most precise sight systems out there, with incredible micro tuning (and my current sight!)
• HHA Tetra Max – Clean, dependable, and perfect for hunting in varied terrain.

Yes, they cost more. But missing a buck of a lifetime because of poor sight alignment costs more.

Ready to Level Your Sight?

Once you understand why leveling matters, the next step is execution. I break down exactly how to level your 1st, 2nd, and 3rd axes in my detailed guide:

→ How to Level the 1st, 2nd, and 3rd Axis on Your Bow Sight: Step-by-Step Guide (Coming soon)

Don’t waste time shooting arrows with a poorly set-up weapon. Take 30 minutes, level your sight, and eliminate the silent problems that are robbing you of accuracy. It’s one of the simplest things you can do to improve your shooting and gain confidence in the field instantly.
